DNA

Introduction

Deoxyribonucleic acid (DNA) is a nucleic acid that contains the genetic instructions used in the development and functioning of all known living organisms and some viruses. The main role of DNA molecules is the long-term storage of information. DNA is often compared to a set of blueprints or a recipe, or a code, since it contains the instructions needed to construct other components of cells, such as proteins and RNA molecules. The DNA segments that carry this genetic information are called genes, but other DNA sequences have structural purposes, or are involved in regulating the use of this genetic information.

Chemically, DNA consists of two long polymers of simple units called nucleotides, with backbones made of sugars and phosphate groups joined by ester bonds. These two strands run in opposite directions to each other and are therefore anti-parallel. Attached to each sugar is one of four types of molecules called bases. It is the sequence of these four bases along the backbone that encodes information. This information is read using the genetic code, which specifies the sequence of the amino acids within proteins. The code is read by copying stretches of DNA into the related nucleic acid RNA, in a process called transcription.

Within cells, DNA is organized into structures called chromosomes. These chromosomes are duplicated before cells divide, in a process called DNA replication. Eukaryotic organisms (animals, plants, fungi, and protists) store their DNA inside the cell nucleus, while in prokaryotes (bacteria and archae) it is found in the cell's cytoplasm. Within the chromosomes, chromatin proteins such as histones compact and organize DNA. These compact structures guide the interactions between DNA and other proteins, helping control which parts of the DNA are transcribed.

DNA Structure

Components of DNA

DNA is a polymer. The monomer units of DNA are nucleotides, and the polymer is known as a "polynucleotide." Each nucleotide consists of a 5-carbon sugar (deoxyribose), a nitrogen containing base attached to the sugar, and a phosphate group. There are four different types of nucleotides found in DNA, differing only in the nitrogenous base. The four nucleotides are given one letter abbreviations as shorthand for the four bases.

• A is for adenine
• G is for guanine
• C is for cytosine
• T is for thymine

Purine Bases

Adenine and guanine are purines. Purines are the larger of the two types of bases found in DNA. Structures are shown below:

Structure of A and G

Adenine                             Guanine

The 9 atoms that make up the fused rings (5 carbon, 4 nitrogen) are numbered 1-9. All ring atoms lie in the same plane.

Pyrimidine Bases

Cytosine and thymine are pyrimidines. The 6 stoms (4 carbon, 2 nitrogen) are numbered 1-6. Like purines, all pyrimidine ring atoms lie in the same plane.

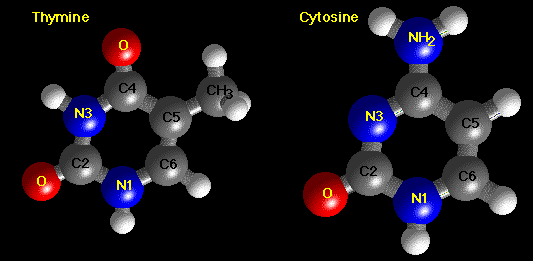

Structure of C and T

Deoxyribose Sugar

The deoxyribose sugar of the DNA backbone has 5 carbons and 3 oxygens. The carbon atoms are numbered 1', 2', 3', 4', and 5' to distinguish from the numbering of the atoms of the purine and pyrmidine rings. The hydroxyl groups on the 5'- and 3'- carbons link to the phosphate groups to form the DNA backbone. Deoxyribose lacks a hydroxyl group at the 2'-position when compared to ribose, the sugar component of RNA.

Structure of deoxyribose

Nucleosides

A nucleoside is one of the four DNA bases covalently attached to the C1' position of a sugar. The sugar in deoxynucleosides is 2'-deoxyribose. The sugar in ribonucleosides is ribose. Nucleosides differ from nucleotides in that they lack phosphate groups. The four different nucleosides of DNA are deoxyadenosine (dA), deoxyguanosine (dG), deoxycytosine (dC), and (deoxy)thymidine (dT, or T).

Structure of dA

In dA and dG, there is an "N-glycoside" bond between the sugar C1' and N9 of the purine.

Nucleotides

A nucleotide is a nucleoside with one or more phosphate groups covalently attached to the 3'- and/or 5'-hydroxyl group(s).

DNA Backbone

The DNA backbone is a polymer with an alternating sugar-phosphate sequence. The deoxyribose sugars are joined at both the 3'-hydroxyl and 5'-hydroxyl groups to phosphate groups in ester links, also known as "phosphodiester" bonds.

Example of DNA Backbone: 5'-d(CGAAT):

Features of the 5'-d(CGAAT) structure:

• Alternating backbone of deoxyribose and phosphodiester groups
• Chain has a direction (known as polarity), 5'- to 3'- from top to bottom
• Oxygens (red atoms) of phosphates are polar and negatively charged
• A, G, C, and T bases can extend away from chain, and stack atop each other
• Bases are hydrophobic

DNA Double Helix

DNA is a normally double stranded macromolecule. Two polynucleotide chains, held together by weak thermodynamic forces, form a DNA molecule.

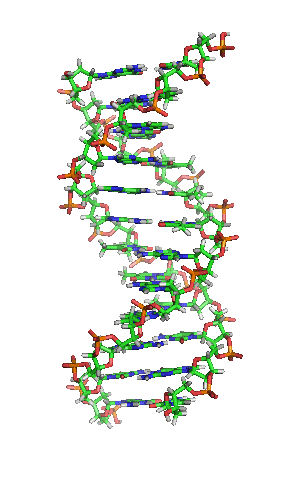

Structure of DNA Double Helix

Features of the DNA Double Helix

• Two DNA strands form a helical spiral, winding around a helix axis in a right-handed spiral
• The two polynucleotide chains run in opposite directions
• The sugar-phosphate backbones of the two DNA strands wind around the helix axis like the railing of a sprial staircase
• The bases of the individual nucleotides are on the inside of the helix, stacked on top of each other like the steps of a spiral staircase.

Base Pairs

Within the DNA double helix, A forms 2 hydrogen bonds with T on the opposite strand, and G forms 3 hyrdorgen bonds with C on the opposite strand.

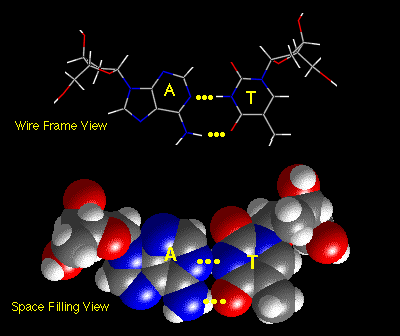

Example of dA-dT base pair as found within DNA double helix

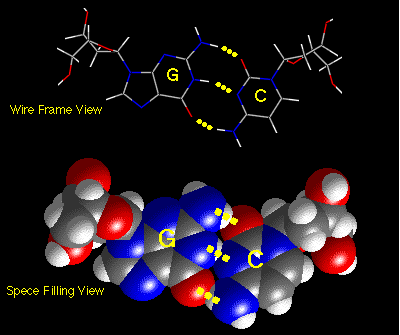

Example of dG-dC base pair as found within DNA double helix

• dA-dT and dG-dC base pairs are the same length, and occupy the same space within a DNA double helix. Therefore the DNA molecule has a uniform diameter.
• dA-dT and dG-dC base pairs can occur in any order within DNA molecules

DNA Helix Axis

The helix axis is most apparent from a view directly down the axis. The sugar-phosphate backbone is on the outside of the helix where the polar phosphate groups (red and yellow atoms) can interact with the polar environment. The nitrogen (blue atoms) containing bases are inside, stacking perpendicular to the helix axis.

View down the helix axis
